Pallet Functional Overview
- Automated Material Flow: Unitize goods for seamless transfer between forklifts, AGVs, and conveyors, increasing handling efficiency by 30-50%.
- High-Density Storage: Enable multi-tier stacking in rack systems to maximize vertical cube utilization.
- Supply Chain Interoperability: Universal interface supporting end-to-end integration from production to retail distribution.
Core Technical Capabilities
- Unit Load Standardization: ISO-compliant dimensions (e.g., 1200×1000mm EUR) accelerate containerization and reduce manual sorting.
- Equipment Interfacing: Precision-engineered fork pockets/roller channels align with automated handling equipment clearances.
- Cargo Securement: Anti-slip surfaces (textured/elastomer-coated); steel pallets maintain structural integrity under >2-ton dynamic loads.
- Data Traceability: RFID/QR code integration for real-time WMS synchronization (batch tracking, expiry monitoring).
Value Proposition
| Advantage | Technical Merit |
|---|---|
| Cost Efficiency | Wooden pallet cost <$20/unit; plastic variants achieve 1,000+ cycles with <5% deformation. |
| Circular Economy | 60%+ recycled HDPE content; pallet pooling reduces carbon footprint by 30% (EPD certified). |
| Global Compliance | EUR/GMA/ISO 6780 compliance ensures container compatibility (ISO 668 interlock). |
| Custom Engineering | Anti-microbial coatings (pharma), static-dissipative treatments (electronics), vented bases (perishables). |
Specifications
| Parameter | Specifications |
|---|---|

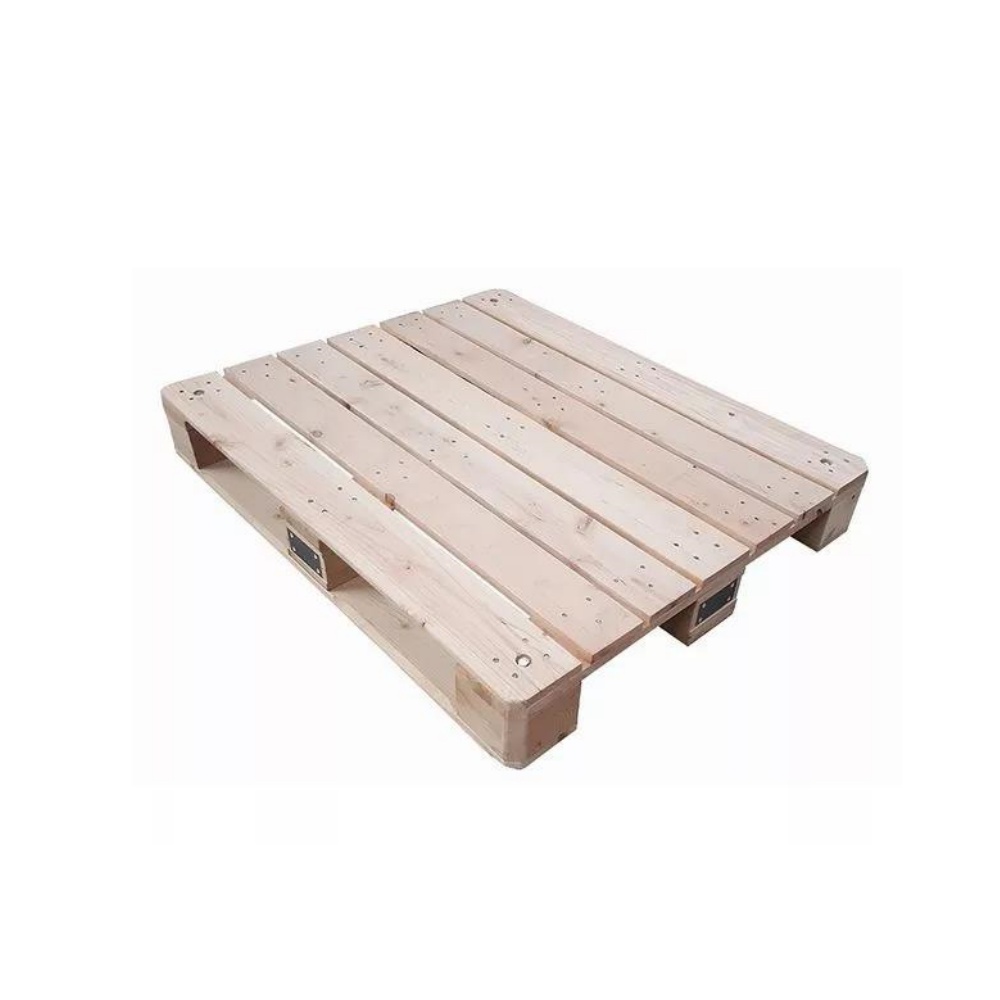

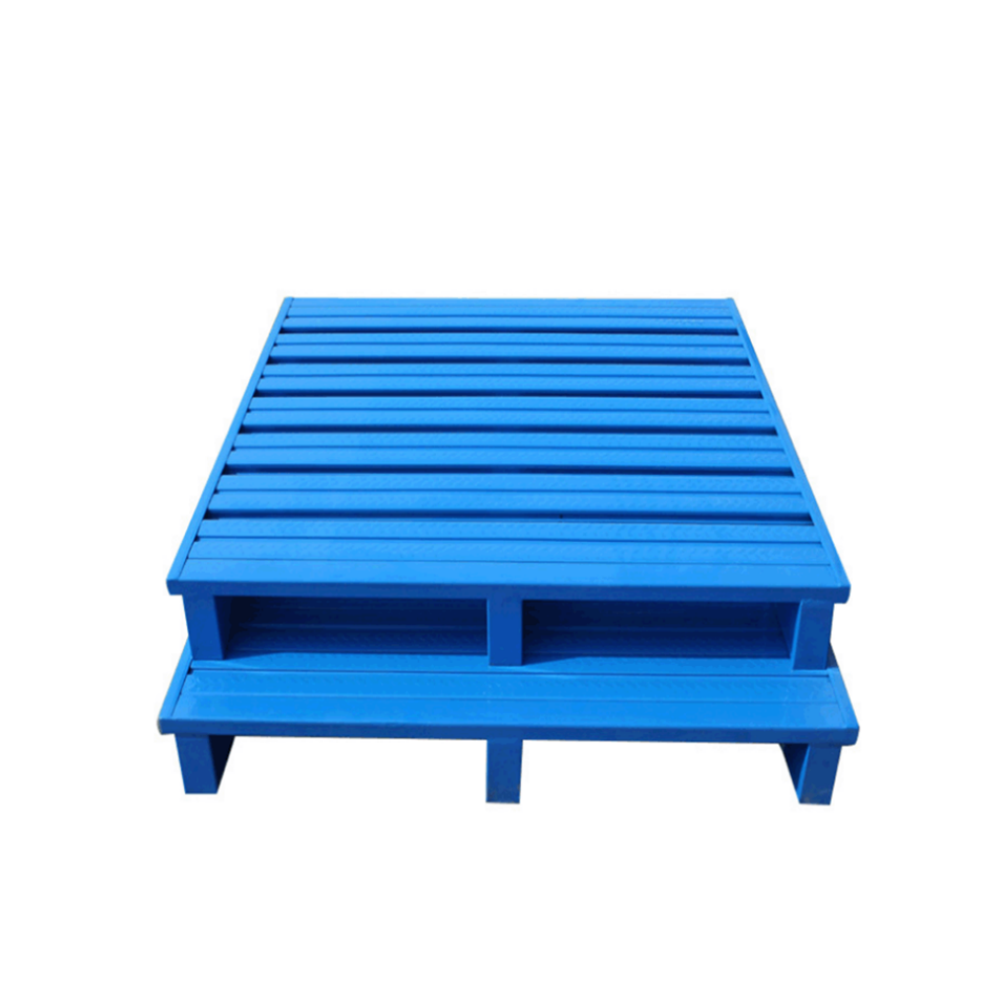

| Material | Wood (softwood/hardwood ply) / Plastic (HDPE/PP) / Metal (steel 304/aluminum) / Paper (honeycomb core) |
| Dimensions | 1200×1000mm (EUR) / 1200×800mm (JIS) / 1100×1100mm (Asia) |
| Load Capacity | Static: 15,000kg / Dynamic: 520kg (metal variants: 10,000kg dynamic) |
| Special Features | Foldable (60% space saving) / RFID slot / Ventilation grid (30% airflow increase) |
